Steel Jack Step Ladders H Type Prepainted Metal Frame Scaffolding 2000mm

MOQ : 20 TON

Price : 600~850 usd/ton

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 ton / month

Delivery Time : 10~15 working days, which will be adjusted according to different products and inventory

Packaging Details : standard packaging

Type : other ladders & scaffoldings, ringlock scaffolding

Standard : 1100,1400,1700,2000mm

Main Material : Galvanized/Prepainted

Warranty : one year

Design Style : Modern

Application : Hotel

Contact Now

Steel jack H frame step ladders scaffolding

Part Name	Material	Surface Finishing	Outter Diameter	Thickness	Remarks
Ringlock Standards	Q345B	Galvanized	48mm/60mm	3.25mm	size and length can be customized
Ringlock Ledgers	Q235B	Galvanized	48mm	2.75mm	size and length can be customized
Diagonal Brace	Q235B	Galvanized	48mm	2.75mm	size and length can be customized
Ringlock Plank	Q235B	Galvanized	NA	NA	size can be customized
Ringlock Jack Base	Q235B	Galvanized	NA	NA	Base plate: 1201202.5mm; screw: 700*38mm

1. Standards

- Patented disk joint design - The ultimate load of vertical pole can reach 20t / full-automatic professional welding process
- Hot dip galvanizing / Q345B low carbon alloy steel structure

Steel Jack Step Ladders H Type Prepainted Metal Frame Scaffolding 2000mm

Item Number	Length(mm)	Diameter(mm)	Tube Thickness(mm)
ZCS-2000	2000	48.3/60	3.25
ZCS-1500	1500
ZCS-1000	1000
ZCS-500	500

2.Ledger

- Patented self-locking pin design / international standard steel connector - Full automatic professional welding process / hotdip galvanizing process

Item Number	Length(mm)	Diameter(mm)	Tube Thickness(mm)
ZCL-3000	3000	48.3	3.2
ZCL-2500	2500
ZCL-2200	2200
ZCL-2000	2000
ZCL-1500	1500
ZCL-1200	1200
ZCL-1065	1065
ZCL-1000	1000
ZCL-750	750

3.Digonal Brace

- Standardized diagonal bars provide necessary components for building stable structures- Patented self-locking pin design /international standard steel connector
- Hot dip galvanizing process

Item Number	Specification(mm)	Diameter(mm)	Tube Thickness(mm)
ZCD-3000*2000	3000*2000	48.3	3.2
ZCD-2500*2000	2500*2000
ZCD-2000*2000	2000*2000
ZCD-1500*2000	1500*2000
ZCD-1000*2000	1000*2000
ZCD-750*2000	750*2000

4.Base plate&Screw

- The exposed length of adjustable base adjusting lead screw of formwork support shall not be greater than 300 mm, and the heightfrom the ground of the lowest level horizontal rod as the bottom of the sweeping rod shall not be greater than 550 mm

Base plate	Screw
1201202.5mm	700*38mm

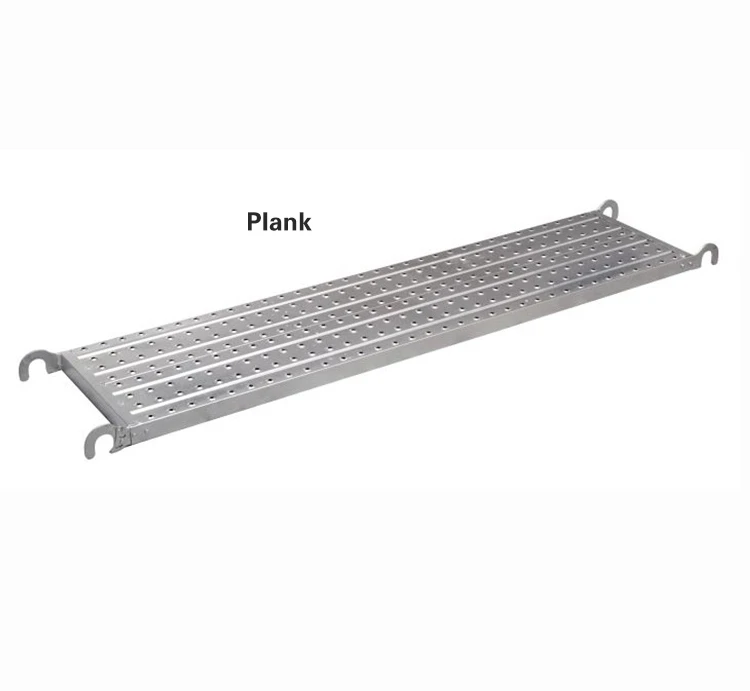

5.Plank

- Provide necessary components for building stable structure - Hot dip galvanizing process

Product Tags:

prepainted steel frame scaffolding

prepainted metal frame scaffolding

2000mm metal frame scaffolding
